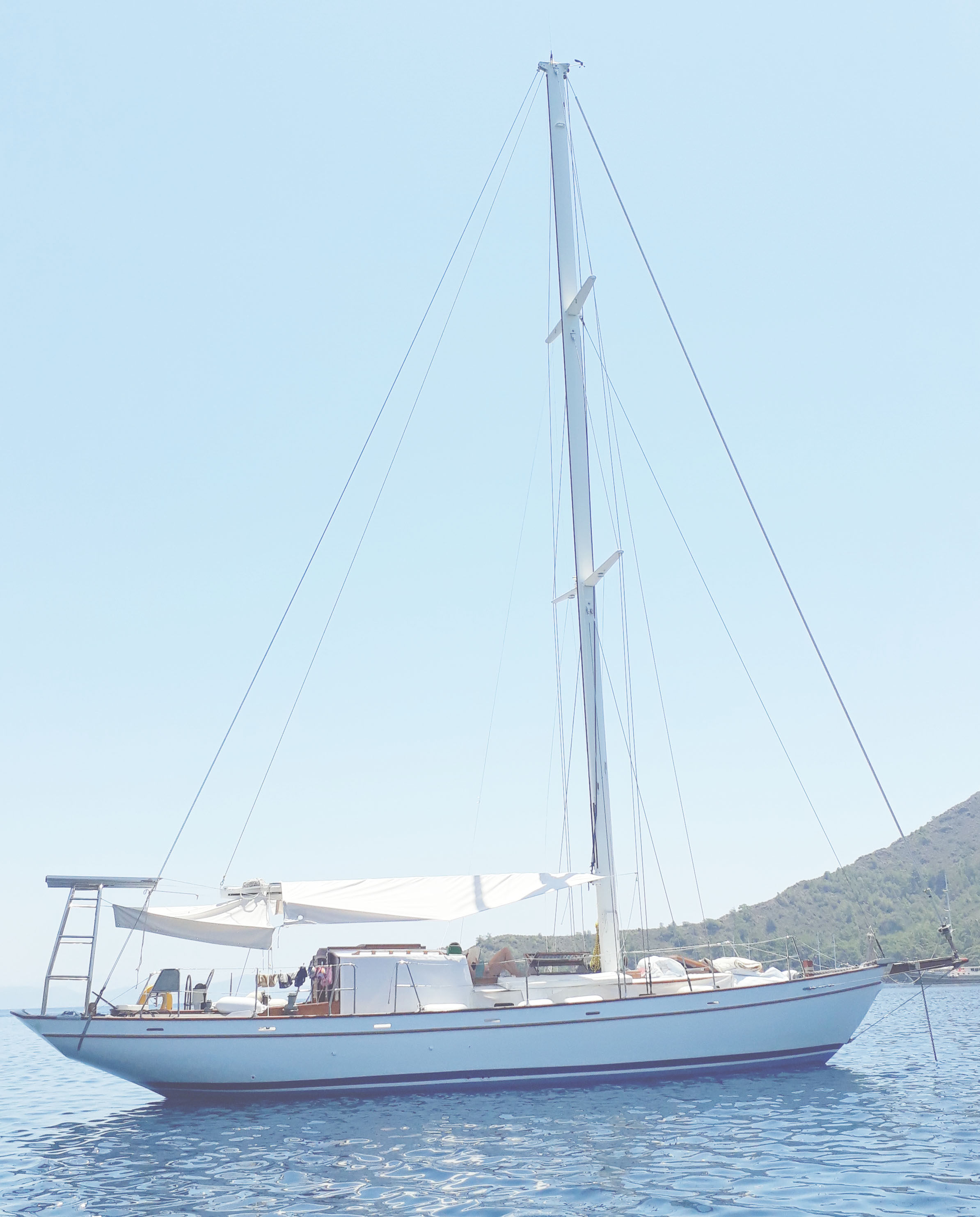

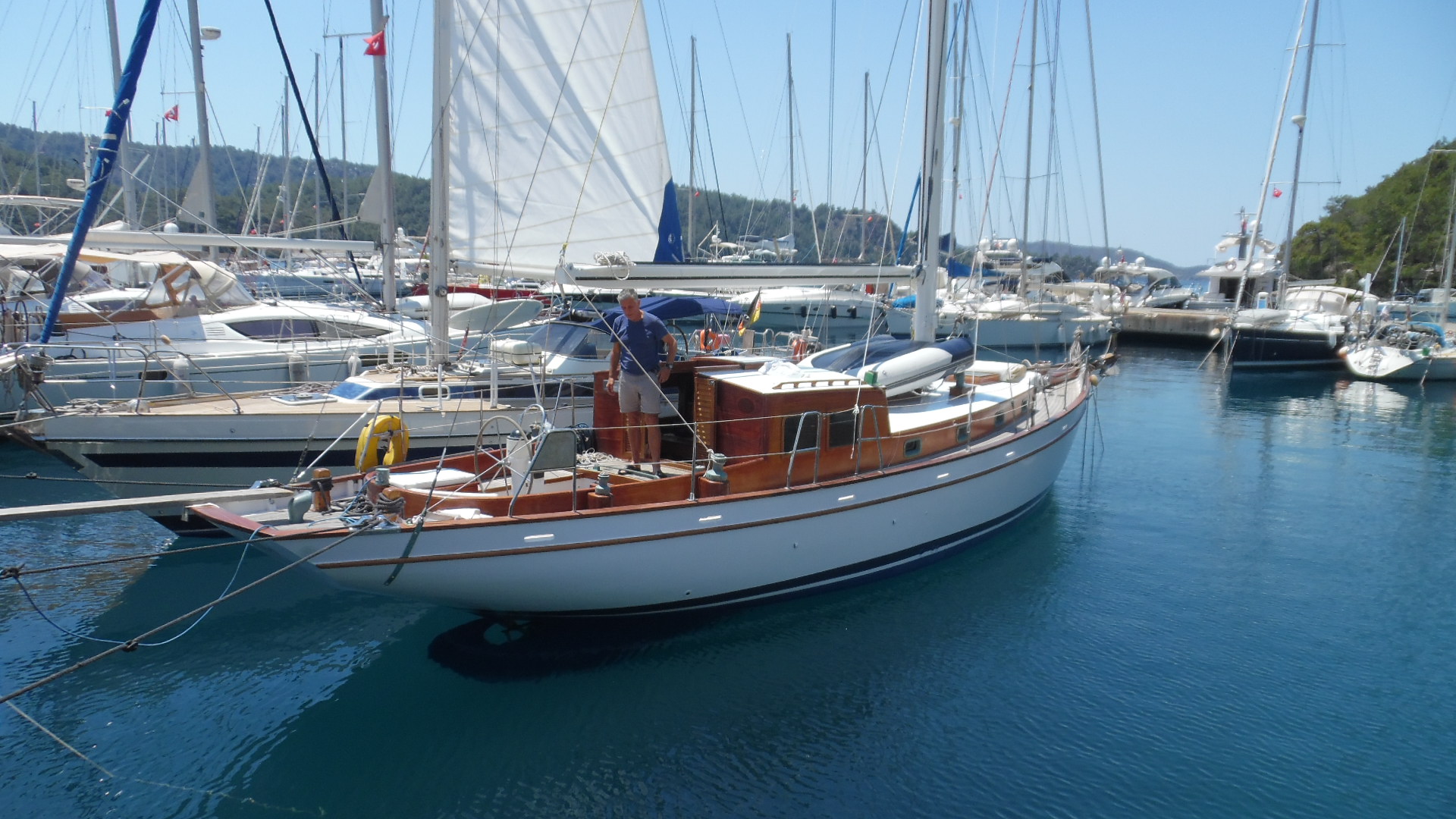

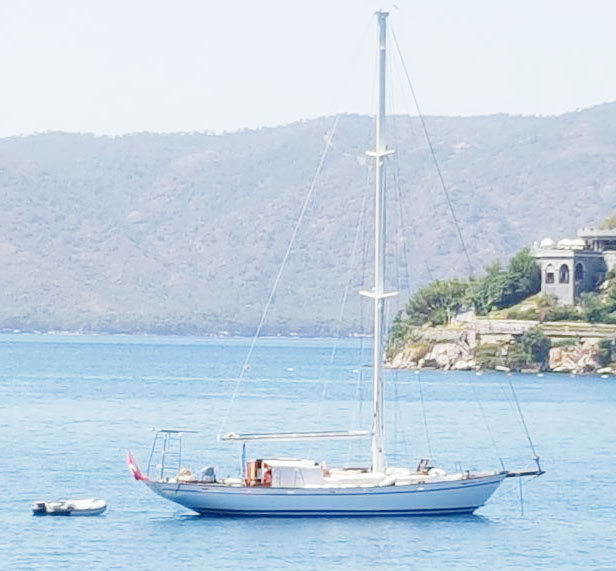

SE5048 - Cobana Boats John G. Alden Design-Sloop 14.10

Type Sailing
Length Overall (LOA) 14.10 m
Beam 3.80 m
Draft 2.55 m
Built Year 2008
Flag Turkish
Hull Material Chestnut
Deck Material Teak
Asking Price 95,000 EUR
Notes

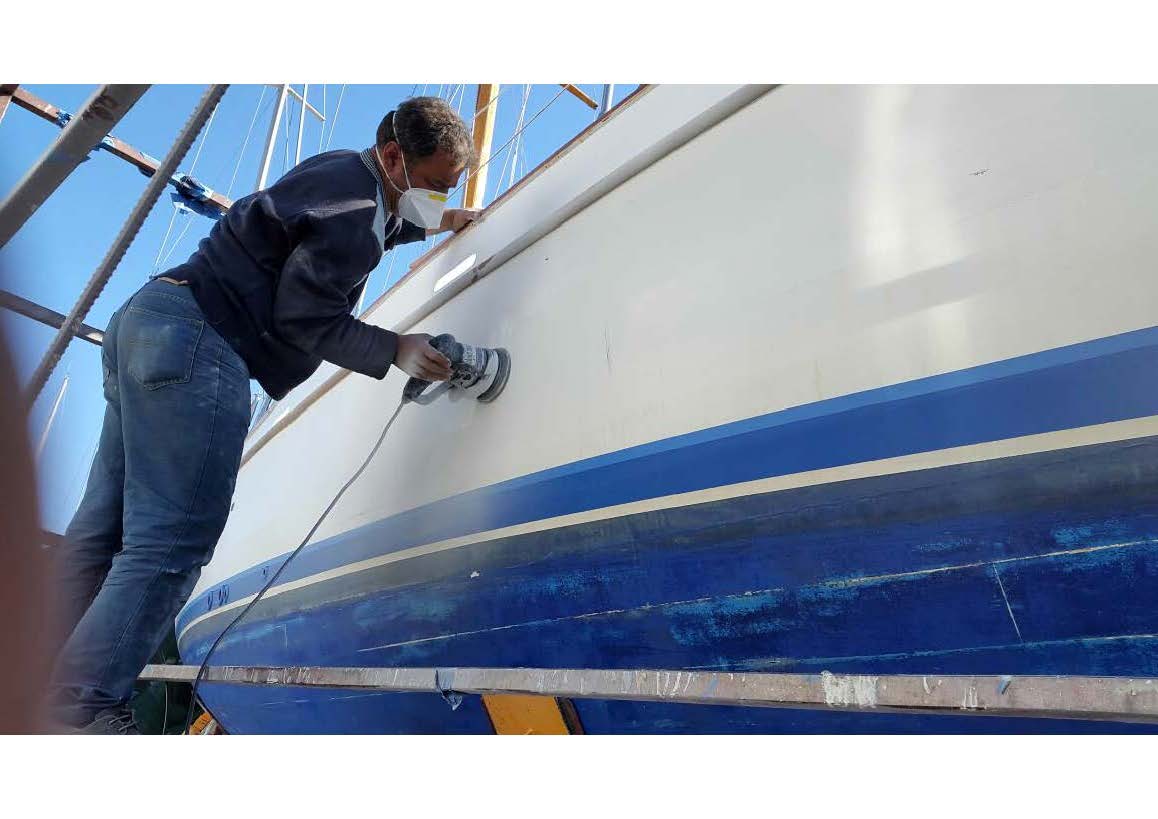

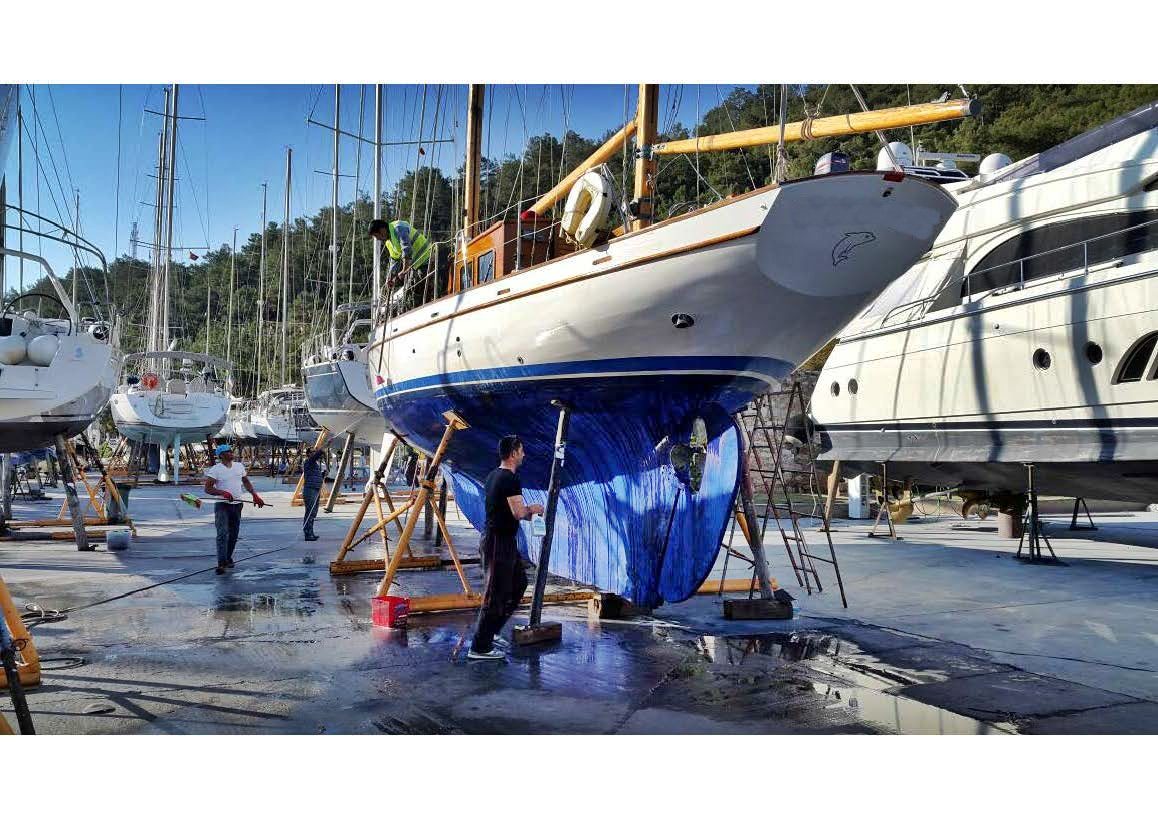

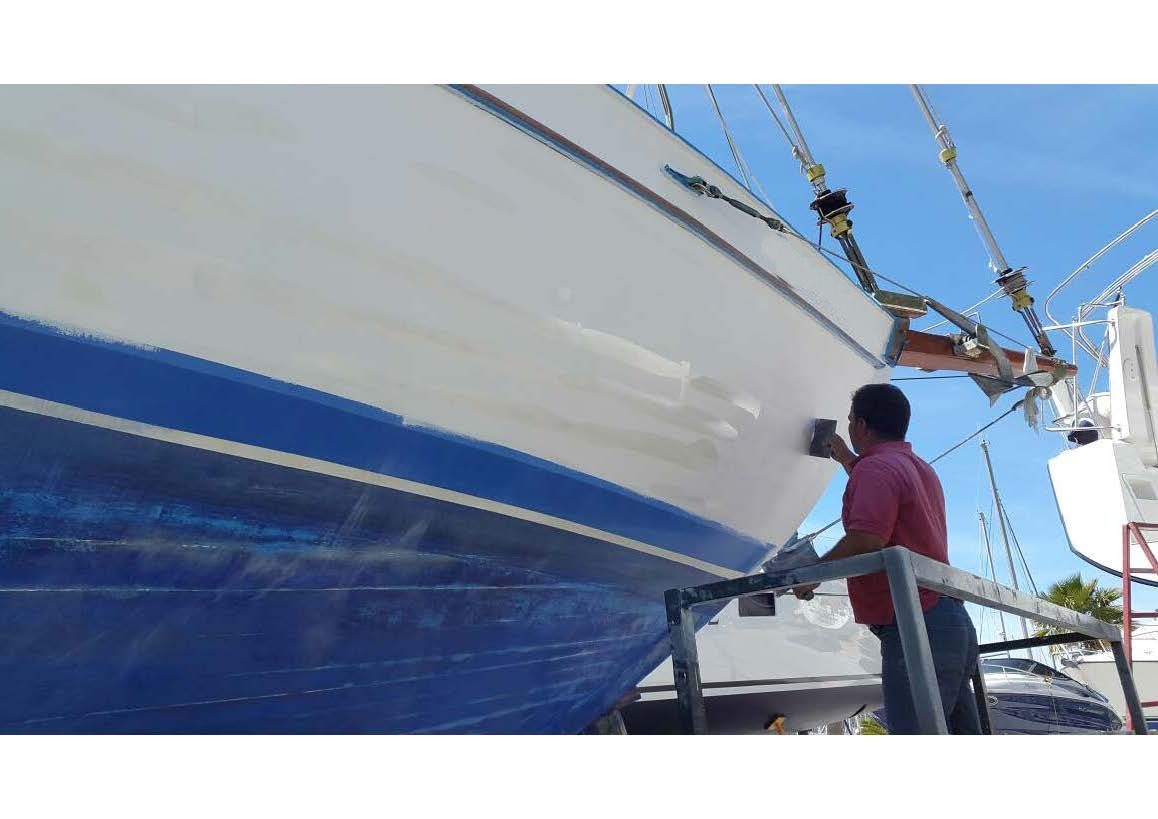

Meticulously designed by John G.Alden in 1939 Malabar XII, all construction details and scantlings are worth seeing Annual maintenance has been carried out in early March 2020 by the owner.

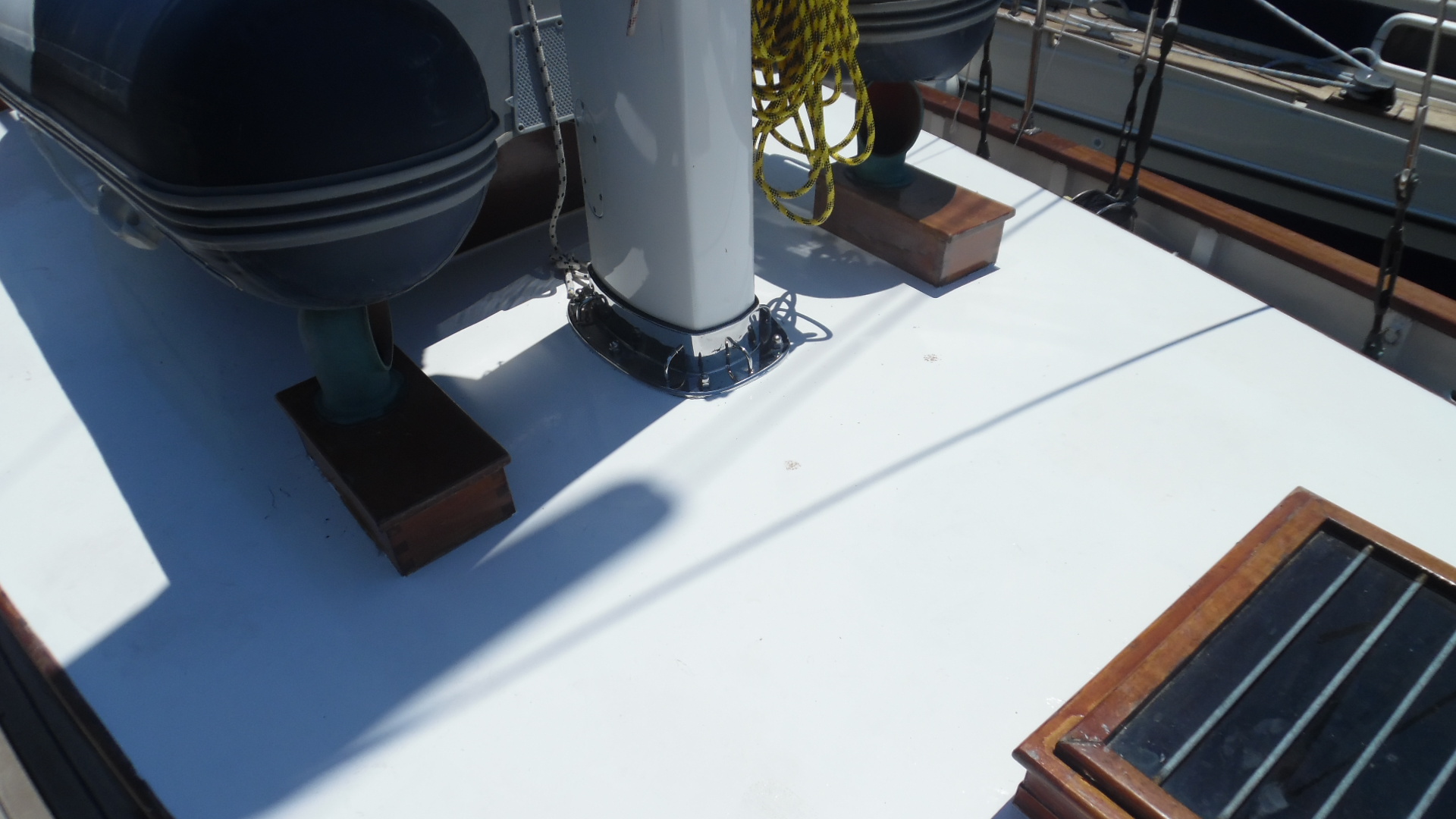

Deck Varnish / New Deck Sikaflex work, Rigging Wires have been checked and serviced.

‹ › ×

Specifications

Tonnage / Displacement 16000 Kgs

Design John G. Alden

Keel Chestnut Fastened to Keel With Bronze Fastenings

Deck 3 Layers of Marine Ply Over Laminated Deck Beams , Covered with 8mm Teak

Internal Design John G. Alden / Cobana Yachts

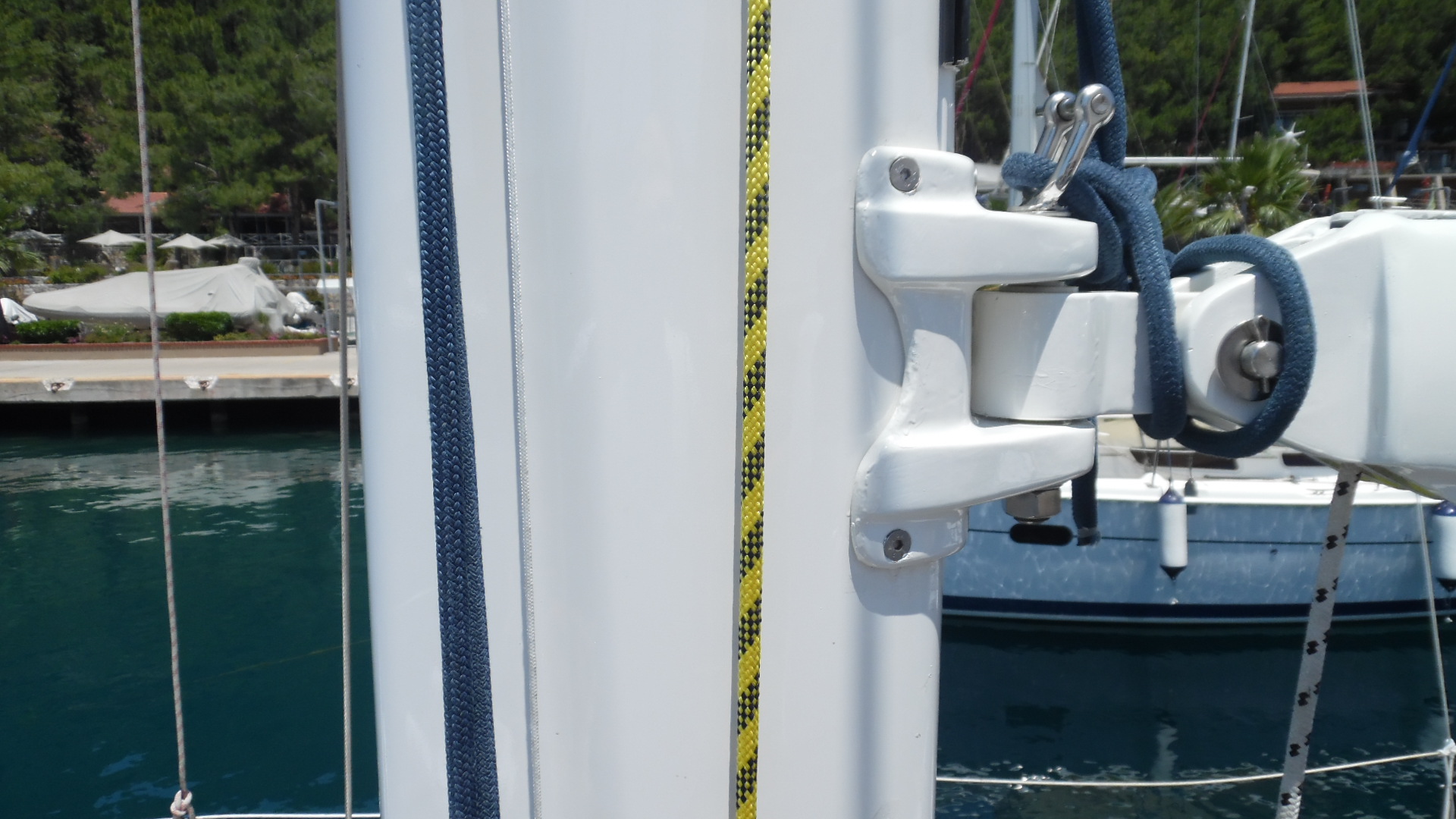

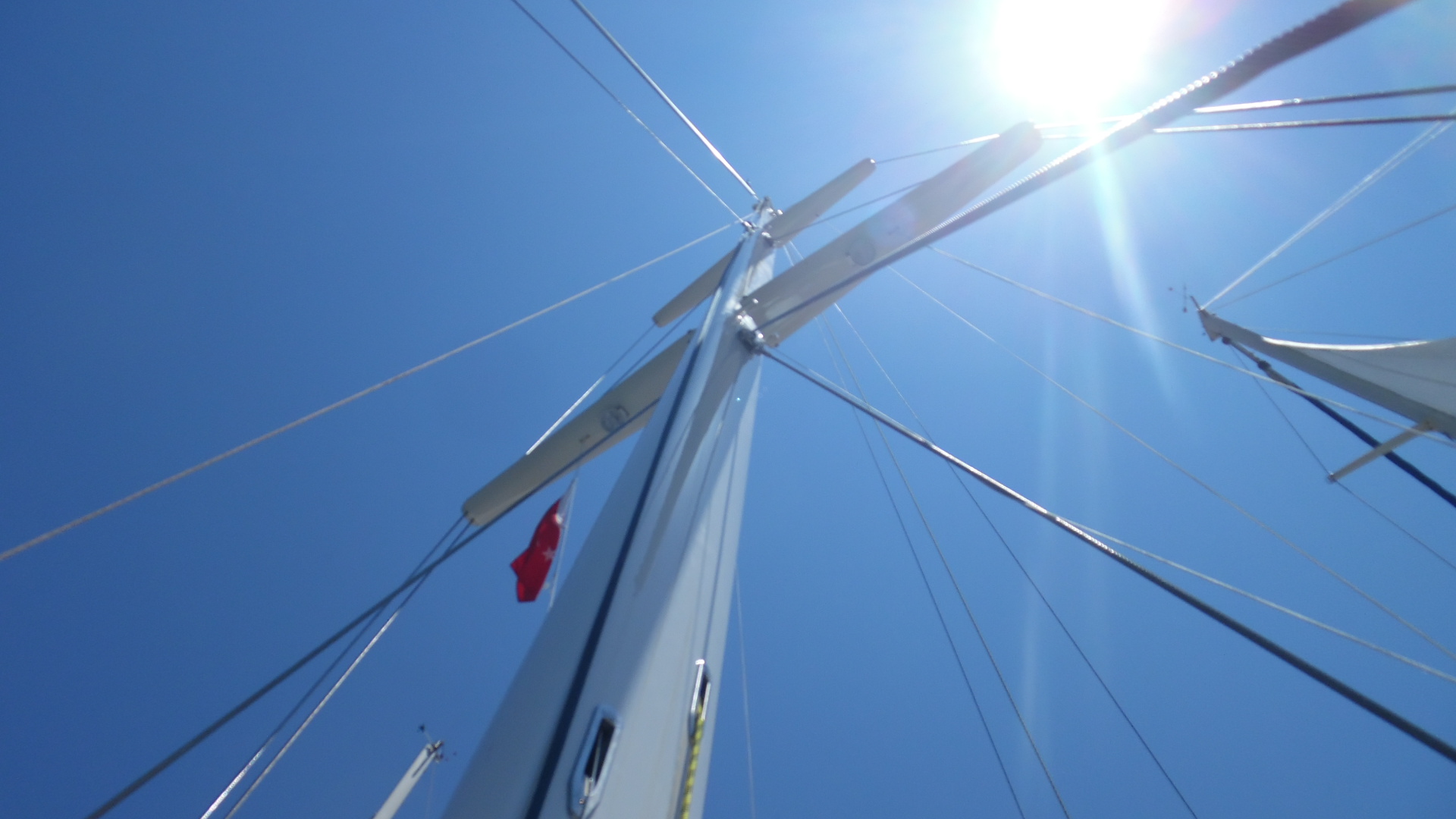

Rig Shroud Connections at Masts All Bronze Machined to Specifications

Other Sapelli Mahogany Planking / Iroko Deck / Chesnut Frames

Tankage

Fuel Capacity 230 lt (CE-HDPE)

Water Capacity 450 lt (CE-HDPE)

Holding Tanks 60 lt (CE-HDPE)

Engine & Machinery

Engine Type Volvo Penta

Engine Power 75 Hp

Consumption Cruising Speed 9 Knots / Max Speed 11 Knots

Battery Charger Zantrex Heart Charger (2015)

Batteries 2 x 60 Ah Deep Cycle Bosch Gel Service Batteries (2015) 1 x 115 Ah Bosch Engine Battery (2015)

Steering Single Position

Inverter Zantrex Heart Inverter (2015)

Propulsion / Propeller 3 Blade Bronze Propeller

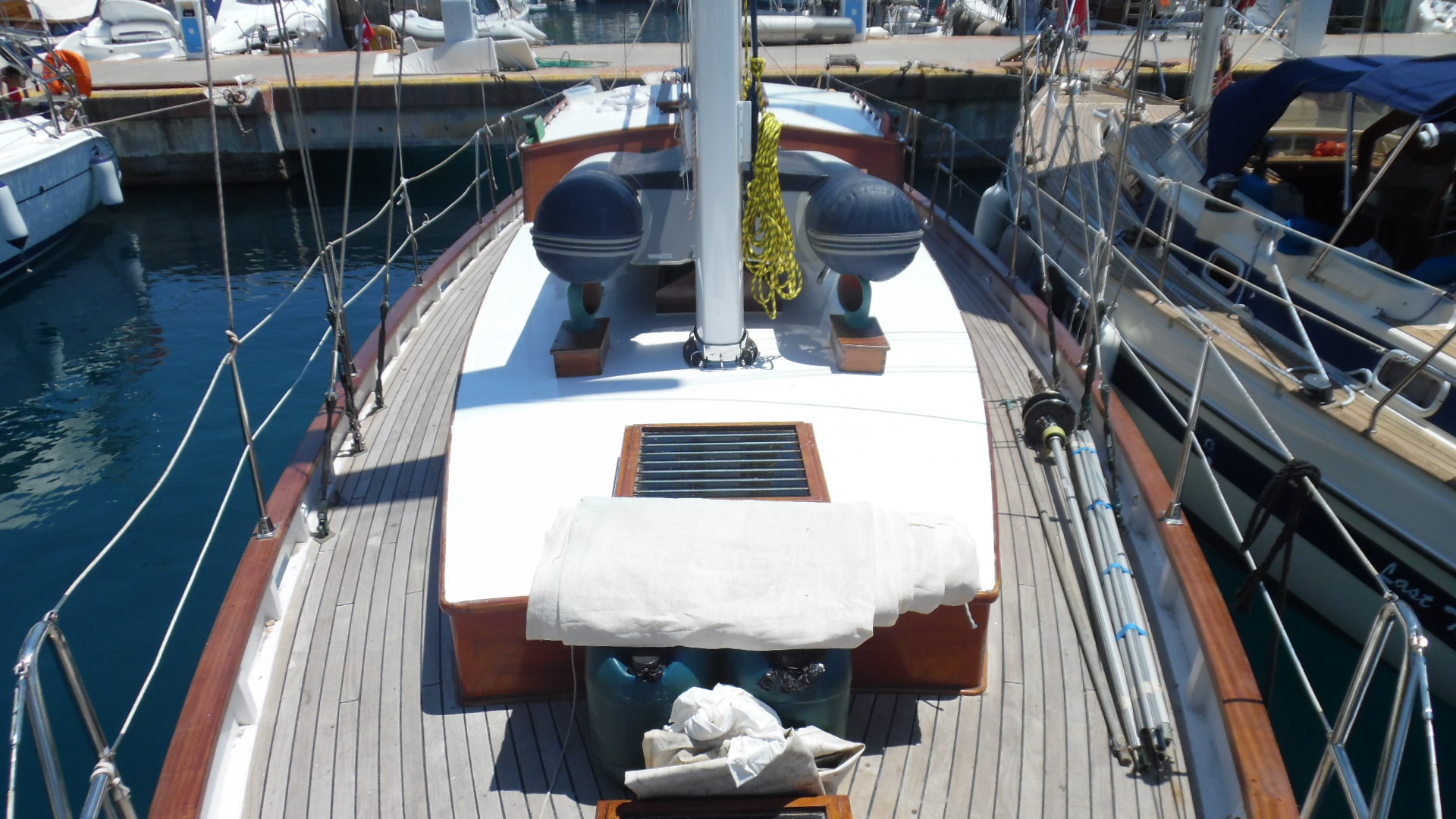

Deck & Safety

Chain 100 m x 10 mm

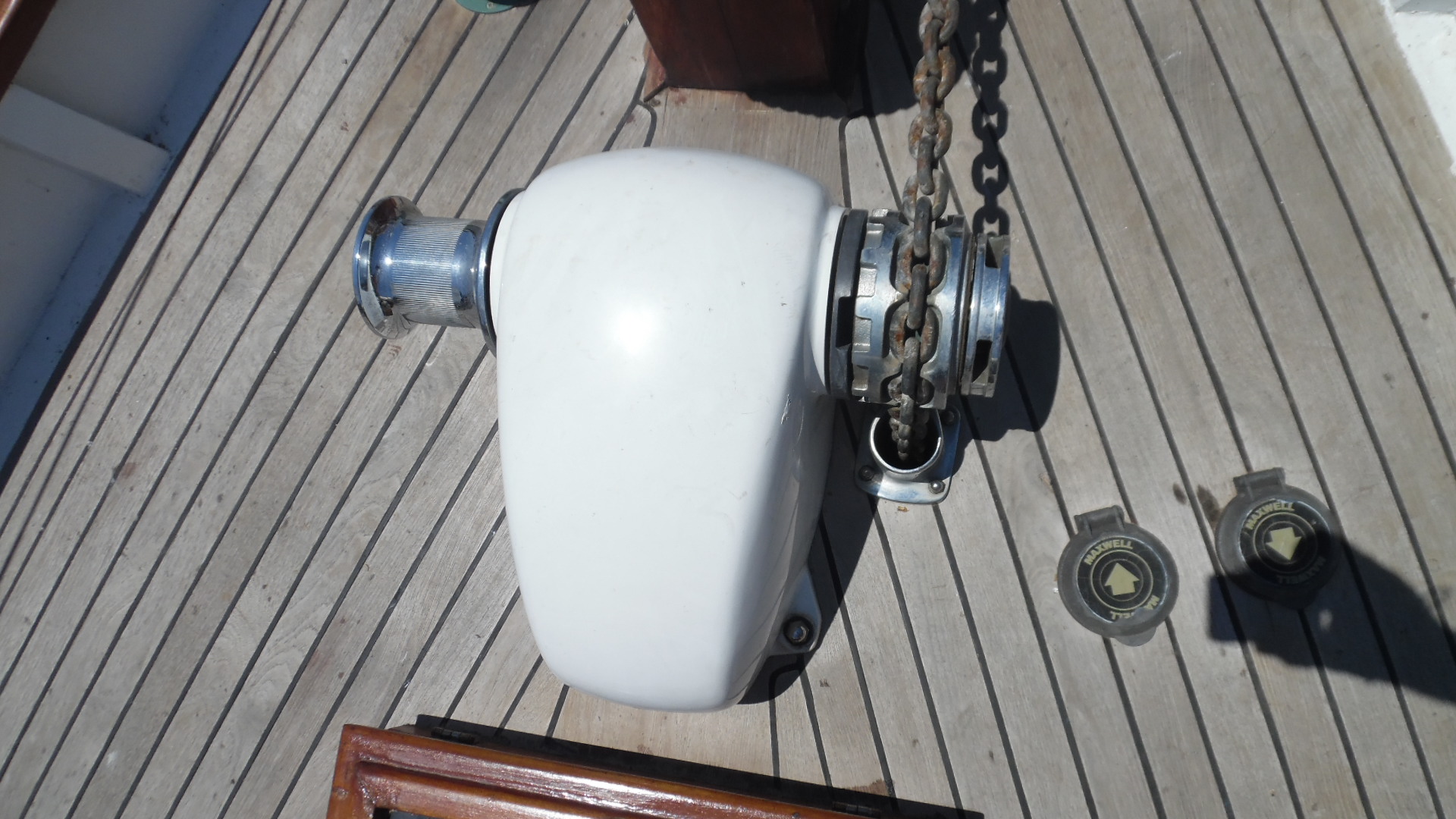

Windlass Maxwell 2200 Windlass

Dinghy Interport 2.30 (New)

Outboard Yamaha 5.5 Hp

Anchors Admiralty

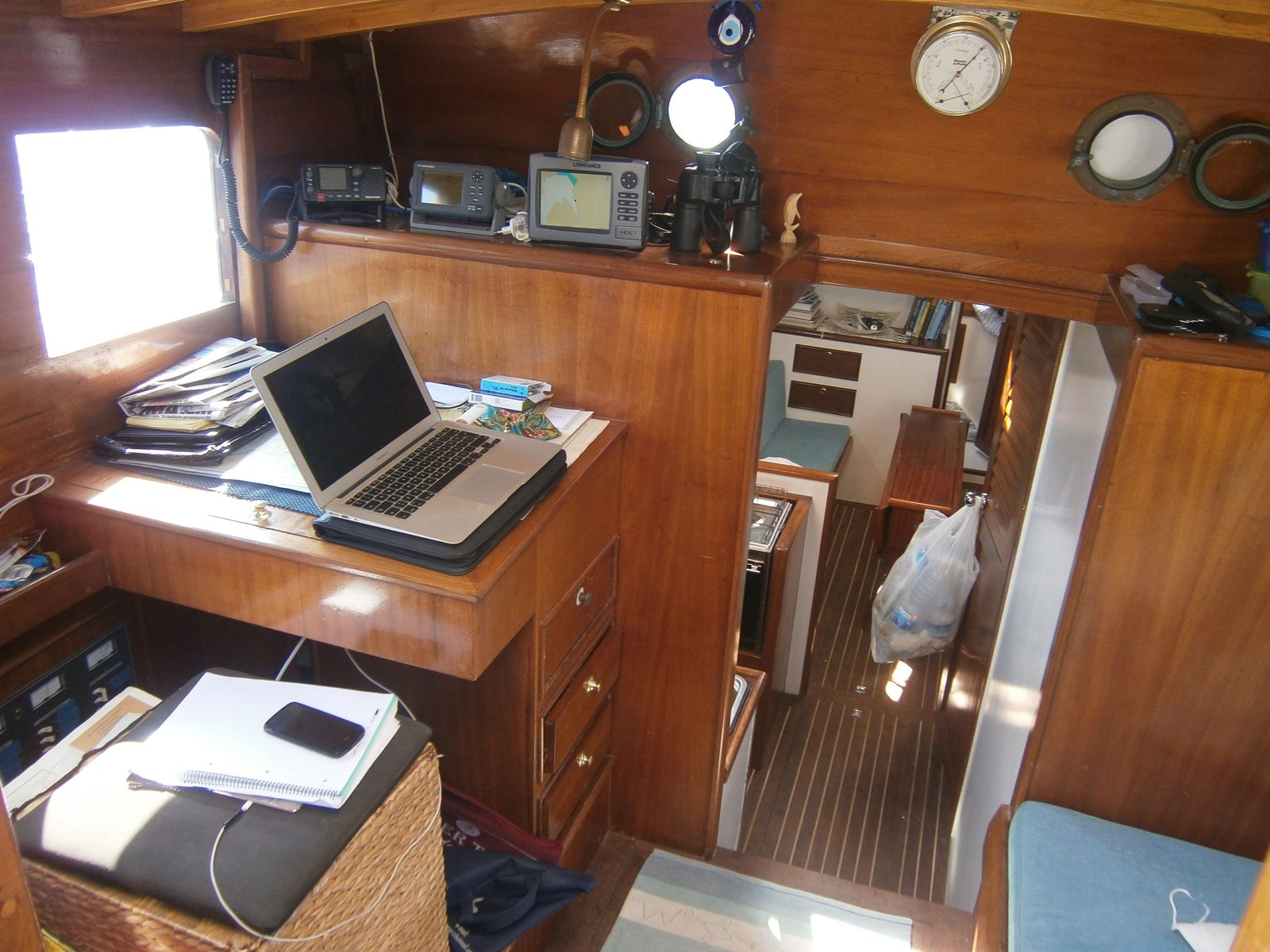

Navigation & Electronics

Log Lowrance

GPS Lowrance

Depth Sounder Raymarine

Chart Plotter Lowrance HDS-7

Compass Yes

Wind Instrument Raymarine

Solar Panels 2 x 150 w / Hour Solara Germany (2018 Installed)

VHF Northstar

Navtex Furuno

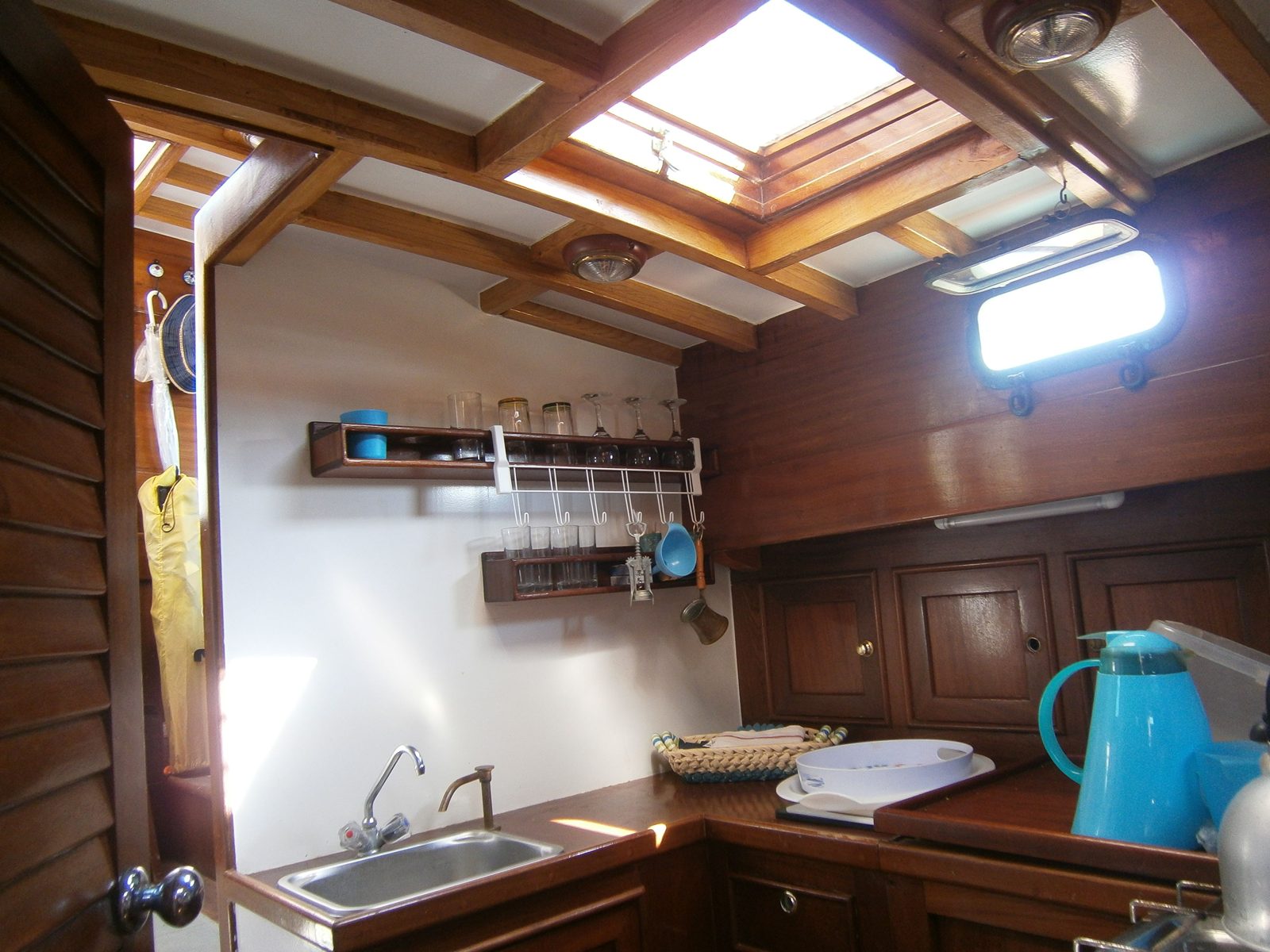

Galley

Cooker Techimpex 3 Burner Cook

Hob/Stove Techimpex

Refrigerator Isotherm Indel 90 lt

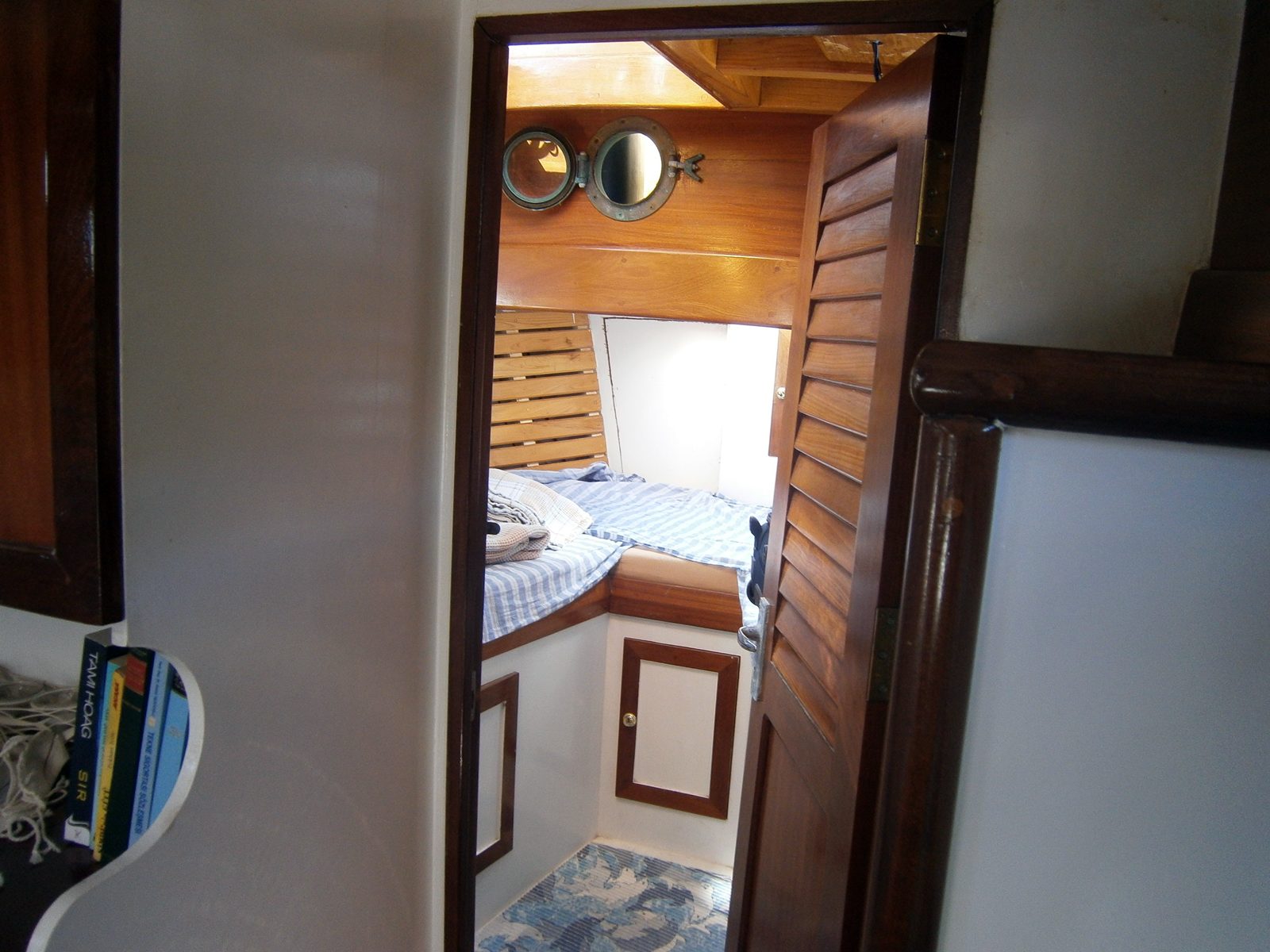

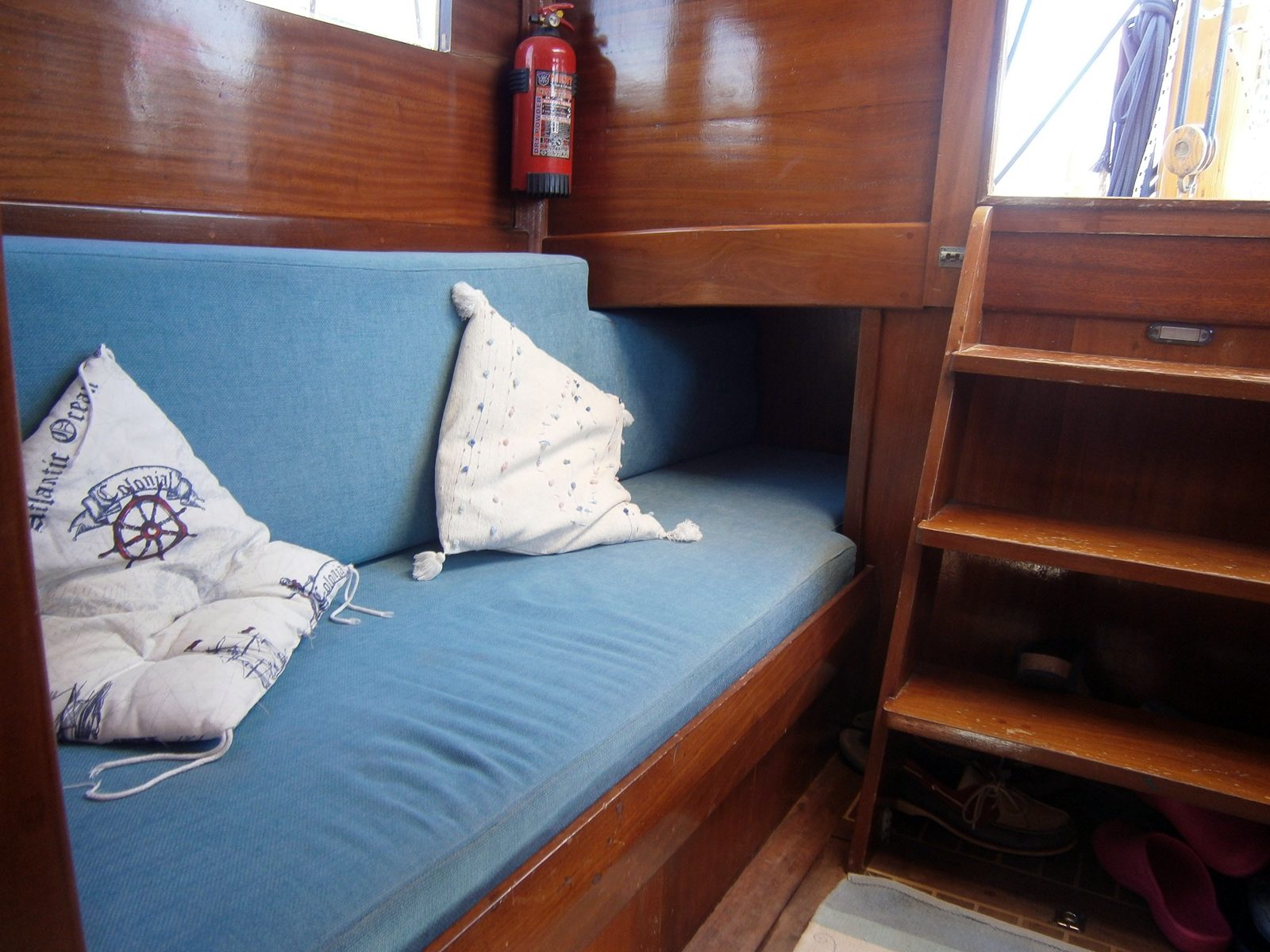

Accommodation

Cabin/Berths 3/6

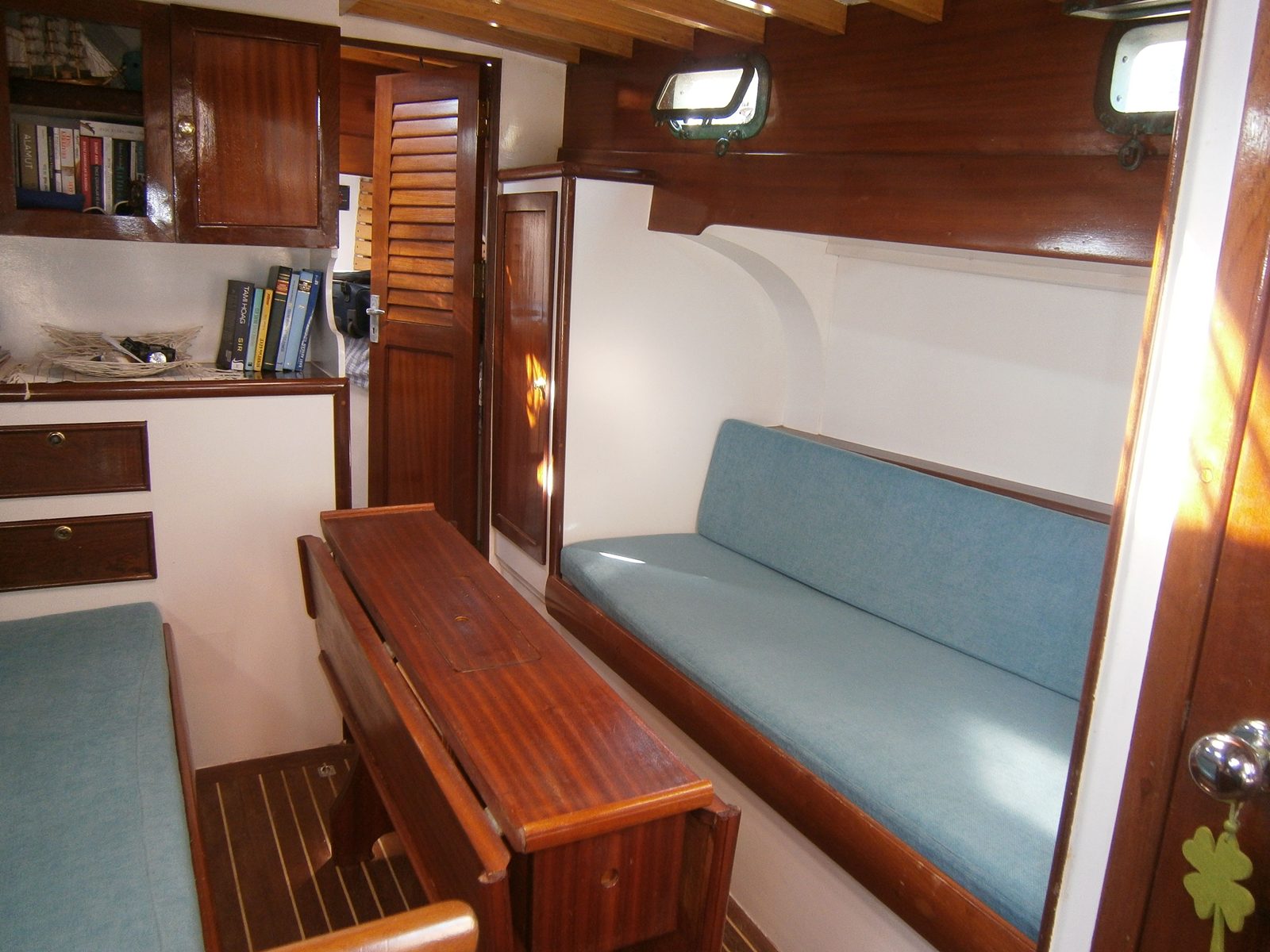

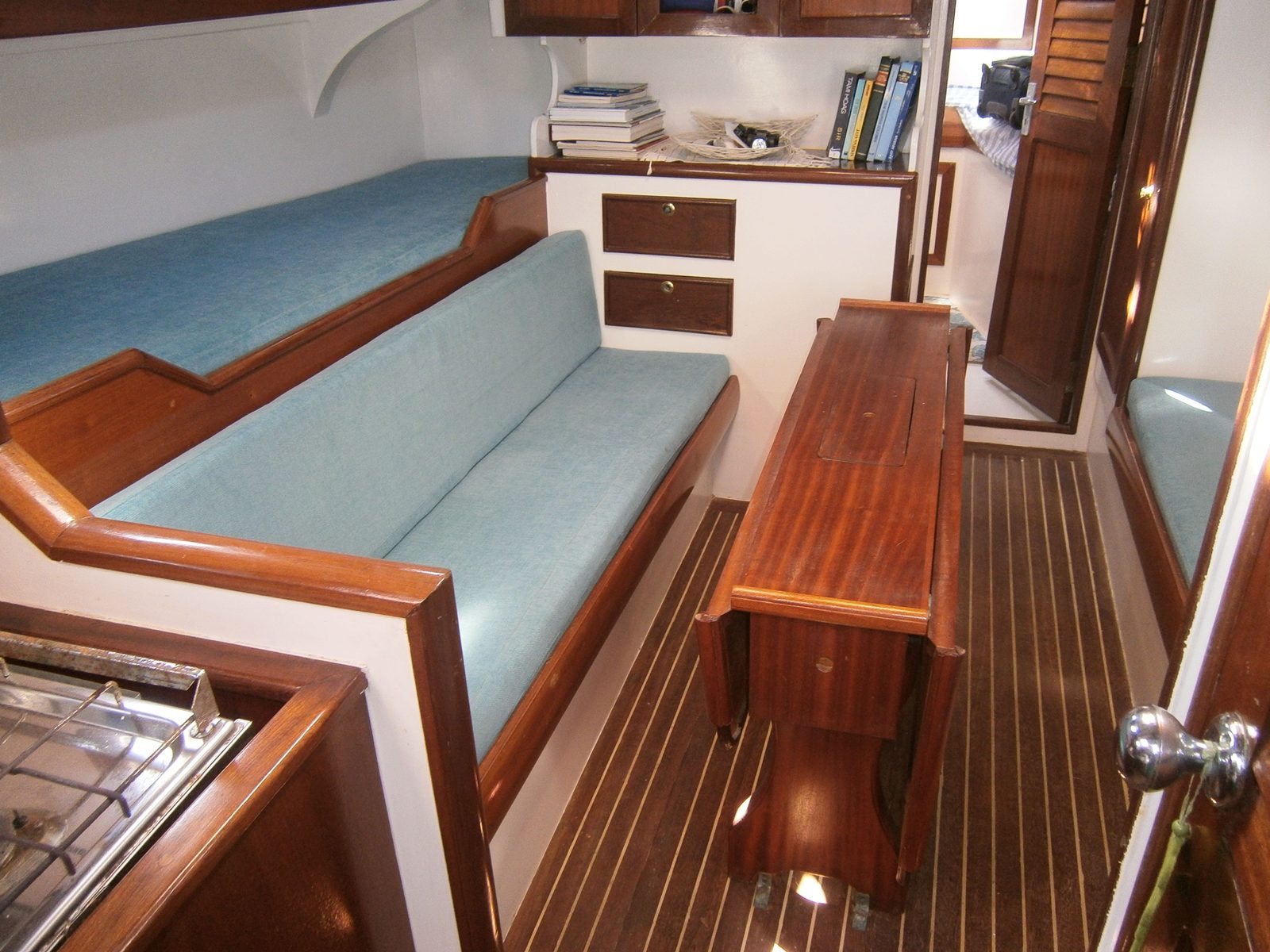

Saloon Yes

Bathroom 2

Cabins 3 x Double Cabin

Toiletten Type Manual Type

Sails

Sails Main Sail (2012) 2 x Genoa (2012) Mizzen (2012)
